G-Sapphire P series

G-P20

G-P30

G-P40

G-P50

G-P60

 Dimensions (mm)

600 x 600 x 1200

600 x 600 x 1200

600 x 600 x 1200

730 x 900 x 1160

730 x 900 x 1160

 Weight (kg)

158

166

175

240

250

 Consumption (W)

1000

1200

1500

2000

2400

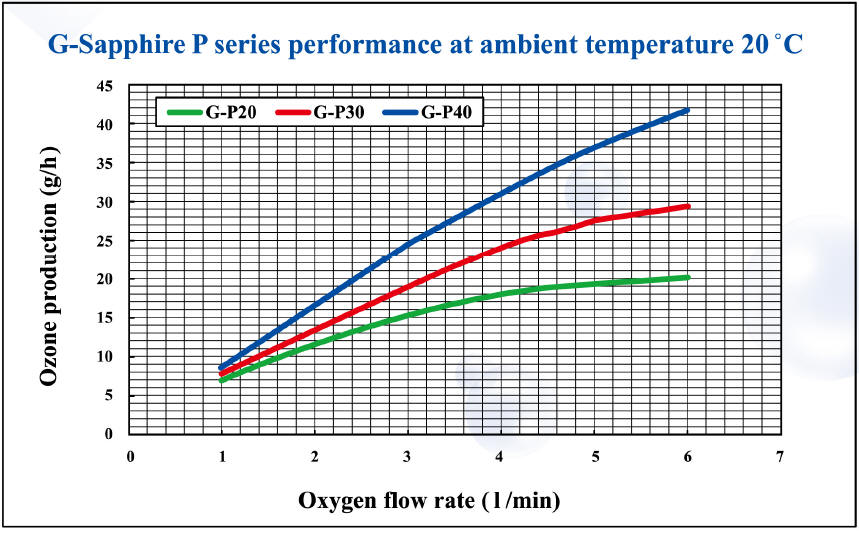

 Ozone production

20 g/h, oxygen-fed @ 4% wt

30 g/h, oxygen-fed @ 6% wt

40 g/h, oxygen-fed @ 8% wt

50 g/h, oxygen-fed @ 8% wt

60 g/h, oxygen-fed @ 8% wt

 Flow rate

6 l/min

6 l/min

6 l/min

8 l/min

10 l/min

 Ozone outlet

6 mm Swagelok

6 mm Swagelok

6 mm Swagelok

10 mm Swagelok

10 mm Swagelok

 Structure

 Corona discharge between the surfaces of two quartz tubes without the presence of metals

 Feed gas

 Internal oxygen concentrator

 Cooling method

 Air cooled

 Power supply

 AC 220 - 240 V, 50/60 Hz, single phase

 Signal interface

 PLC multi-channels controller/ display

 Ozone production can be externally controlled by 4 - 20 mA signal
